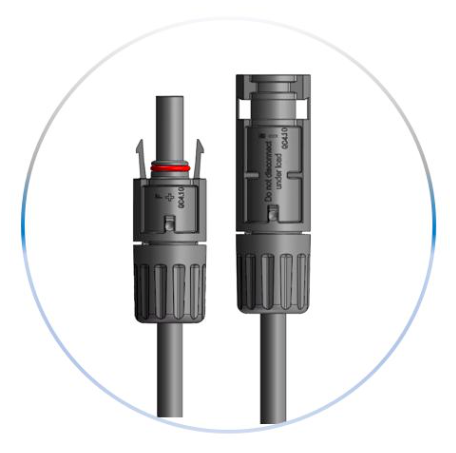

1500V対応4SQコネクタ_QC 4.10-PLUS (4.7-6.0) LJQ.01.0275

認証

Certificate

UL

TUV

名称

Product Name

Series QC4.10, followed by –a5, may be followed by none, followed by c12, c13, c14 or c15, followed by d1 or d3, followed by e2 or e4, may be followed by f1, and may be followed by g1.

QC4.10(PLUS)

認証型番

Certified Model

QC4.10-a5CDEf1g1

QC4.10-cds

定格電圧

Rated Voltage

UL1500V

IEC1500V

定格電流

Rated Current

30A for 14AWG 35A for 12AWG 50A for 10AWG

36A for 2.5mm2 41A for 4.0mm2 46A for 6.0mm2

ケーブル規格

Cable Specification

90OC 2000V, Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm,
14 AWG, 12 AWG, 10 AWG

IEC 1500V,Strands of Conductor 41~84/0.25~0.3, OD 5.9~7.2mm,

2.5mm2, 4.0mm2, 6.0mm2

保護等級

IP degree

N/A

IP65/IP68(1m,1h)

セキュリティレベル

Protection Class

N/A

Class II

接触抵抗

Resistance of Connector

Max 0.3mΩ

Max 0.3mΩ

耐火等級

FlammabilityClass

UL94 V-0

UL94 V-0

温度範囲

Temperature Range

-40°C~+85°C

-40°C~+85°C

Caution

"Do Not Disconnect Under Load: PV plug connections must not be disconnected while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the

AC circuit”.

N/A
